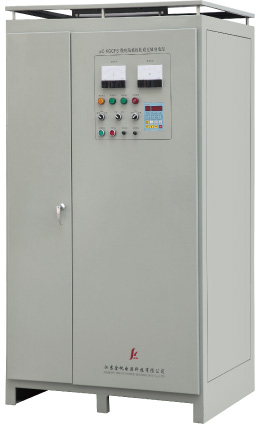

μC-KGCFS/KGCFSH Intelligent Plate Formation Charger/Discharger
| Application: |
| Plate formation for various of lead acid batteries. KGCFSH type is low harmonic and environmental-protection type. |
| Features: |
|
With fully digital control technology which is based on SCR, one microprocessor controls one circuit. Its most notable features are: easy operation, powerful performance, high reliability, discharge with feedback to grid. Microprocessor programming is very easy, operators can manipulate the equipment just by the panel. It is more energy-save comparing with other same kind machines. It is no need to use Harmonic Pollution Treatment System for KGCFSH machine, because of its low harmonic. |
| Functions: |
| Setting and storing many formation modes and parameters of different types of battery and setting for one step control. Providing the following operation modes: constant-current charging, constant-voltage charging, constant-voltage with current-limited charging, constant-current with voltage-limited discharging, cycling, pause and pros and cons of plate controlling; State shifting by time setting/voltage setting/Ah setting, recording operation data at setting time; Protecting against overcurrent, overvoltage and open circuit. Power off data logging, and automatic power on recovering; Displaying on LED operation data and cause of troubles. Central network control and data processing when connected with PC via interface. |
| Technical Parameters: |
1. Range of current controlled:1%～100%F.S
2. Range of voltage controlled: 10%～100%F.S
3. Precision of current/voltage: ≤0.5% F.S
4. Time precision: ≤15s/24h
5. KGCFSH Harmonic content: ≤5%(meet national harmonic requirement) | |
 |
| |
| Specifications： |
| Models |
Output current |
Output voltage |
Circuits |
Size(cm) |
Weight(kg) |
| w |
h |
d |
| μC-KGCFS、KGCFSH 80A/320V |
80A |
320V |
1、2 |
100 |
180 |
80 |
500、700 |
| μC-KGCFS、KGCFSH 80A/350V |
80A |
350V |
1、2
|
100 |
180 |
80 |
550、750 |
| μC-KGCFS、KGCFSH 100A/320V |
100A |
320V |
1、2 |
100 |
180 |
80 |
550、800 |
| μC-KGCFS、KGCFSH 100A/350V |
100A |
350V |
1、2 |
100 |
180 |
80 |
550、800 |
| μC-KGCFS、KGCFSH 150A/320V |
150A |
320V |
1、2 |
100 |
180 |
80 |
600、850 |
| μC-KGCFS、KGCFSH 150A/350V |
150A |
350V |
1、2 |
100 |
180 |
80 |
650、900 |
| μC-KGCFS、KGCFSH 200A |
200A |
320V、350V |
1 |
100 |
180 |
80 |
700、780 |
| μC-KGCFS、KGCFSH 300A |
300A |
320V、350V |
1 |
100 |
180 |
80 |
780、880 |
| μC-KGCFS、KGCFSH 350A |
350A |
320V、350V |
1 |
100 |
180 |
80 |
850、900 |
| μC-KGCFS、KGCFSH 400A |
400A |
320V、350V |
1 |
100 |
180 |
80 |
950、1000 |
| μC-KGCFS、KGCFSH 500A |
500A |
320V、350V |
1 |
100 |
180 |
80 |
1150、1250 | |
