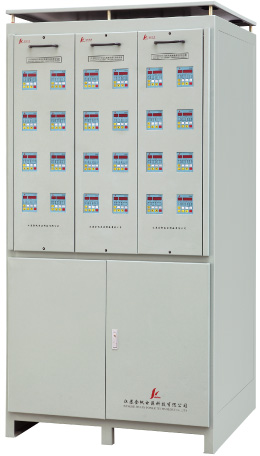

μC-3000S/3000SH Fully Digital Battery Formation Charger/Discharger
| Application: |
| Small-capacity battery formation and battery pack charging/discharging. μC-3000SH is low harmonic & environmental-protection machine. |
| Features: |
|
With fully digital control technology which is based on SCR, one microprocessor controls one circuit. The structure is so compact by advantage of its modular-drawer design. Its most notable features are: easy operation, powerful performance, high reliability and precision, low noise, discharge with feedback to grid. Operator can judge the malfunctions and take corresponding solutions according to the malfunction information that the equipment provide by its self-examination character. Equipment under 6A adopting patent fastfuse-free technology can provide much more convenience to customers. μC-3000SH is low harmonic & environmental-protection machine. |
| Functions: |
| Setting and storing many formation modes and parameters of different types of battery. Providing the following operation modes: constant-current charging, constant-voltage charging, constant-voltage with current-limited charging, constant-current with voltage-limited discharging, cycling and pause; State shifting by time setting/voltage setting/Ah setting, recording operation data at setting time; Protecting against overcurrent, overvoltage and open circuit. Power off data logging, and automatic power on recovering; Protecting against battery anti-connection, over-discharging and output short circuit protection and power grid fault; Displaying on LED operation data and cause of troubles. Central network control and data processing when connected with PC via interface. |
| Technical Parameters: |
1.Range of current controlled:1%～100% F.S
2. Range of voltage controlled: 10%～100% F.S
3.Precision of voltage/current: ≤0.5% F.S
4.Timing precision: ≤15s/24h
5. Harmonic content: 3000S: ＜30% 3000SH:＜10% | |
 |
| |
| Specifications： |
| Models |
Output current |
Output voltage |
Circuits |
Size(cm) |
Weight(kg) |
| w |
h |
d |
| μC-3000S、3000SH 3A/320V |
3A |
320V
|
24、30、40 |
100 |
200 |
80 |
400-500 |
| μC-3000S、3000SH 5A/320V |
5A |
320V |
24、30、40 |
100 |
200 |
80 |
400-500 |
| μC-3000S、3000SH 6A/320V |
6A |
320V |
24、30、40 |
100 |
200 |
80 |
450-550 |
| μC-3000S、3000SH 8A/320V |
8A |
320V |
12、15、24、30 |
120 |
200 |
80 |
600-750 |
| μC-3000S、3000SH 10A/320V |
10A |
320V |
12、15、24、30 |
120 |
200 |
80 |
700-850 |
| μC-3000S、3000SH 12A/320V |
12A |
320V |
12、15 |
120 |
200 |
80 |
720-800 |
| μC-3000S、3000SH 15A/320V |
15A |
320V |
12、15 |
120 |
200 |
80 |
750-800 | |
