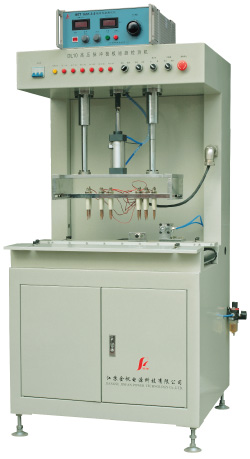

DL10 High-voltage Pulse Plate Short Circuit Tester
| Application: |
| For testing short circuit between positive & negative plates of unfilled-acid battery. |
| Functions & Features: |
1. This machine takes microprocessor as controlling center. With high capacity & high-voltage pulse, high sensitive current testing and high precision testing, it realizes precise and fast testing, and give alarm by sounding & flashing for unqualified products. Testing voltage and current are set by figures.
2. High sensitive testing, can not affected by surrounding humidity. |
| Technical Parameters: |
1. Input Power Supply: Single phase, AC220V, 50HZ
2. Testing Voltage: DC400-3000V, DC peak value
3. Breakdown Resistance Sensitivity: max 250Ώ
| |
 |
| |
